Super Grid

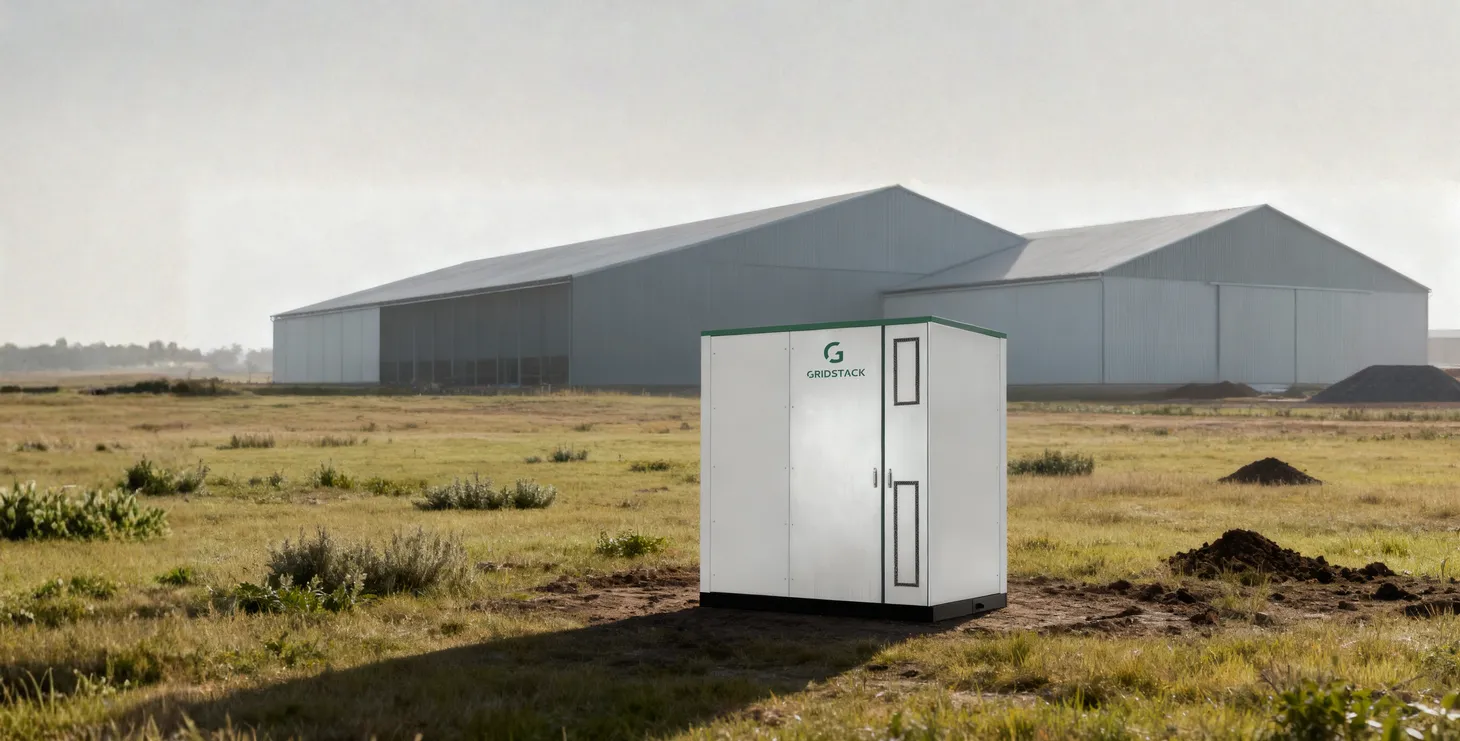

Super Grid — safe, smart and scalable energy storage
Powering the energy transition with advanced Battery Energy Storage Systems (BESS) built for performance and reliability.
Super Grid combines multi-layer safety features, modular flexibility, AI-driven management, and durable performance — ensuring efficient, secure, and scalable energy storage for any environment.
Benefits
01
Safe energy storage
Batteries with multi-layer fire protection
Integrated fire alarm and automaticmonitoring
Ensures reliable operation even in demanding environments
02
Flexible solutions
All in one design with easy installation

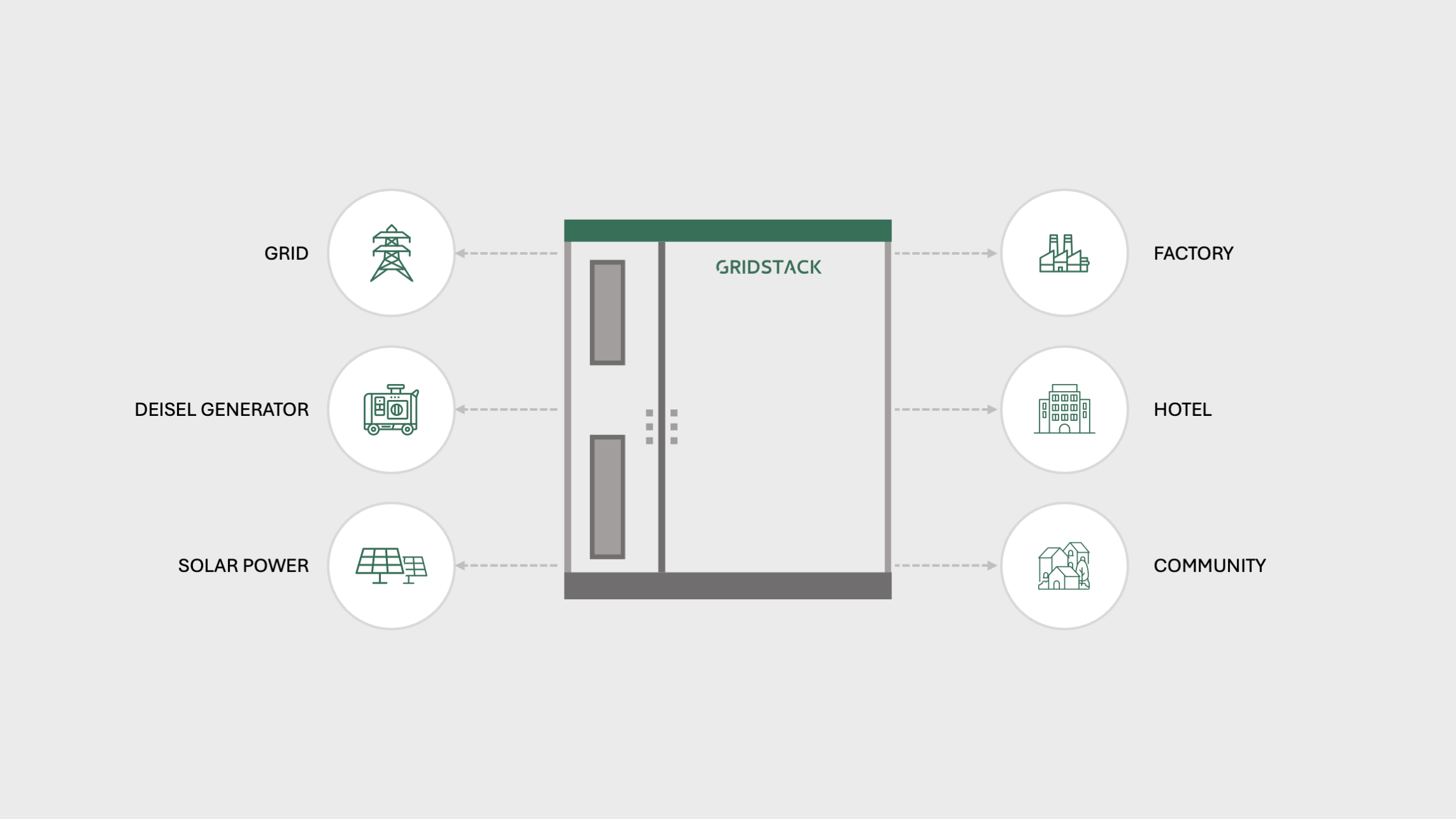

Can be connected to solar systems, generators, or the grid
Modular system - expand as your needs grow
03
Smart management
AI-based energy management for optimal charging and use
Real-time data via cloud platform with automatic alerts
Efficient thermal management with liquid cooling
04
Durable performance
Long service life with minimal maintenance
Stable temperature and reduced maintenance requirements
Reliable operation with high energy efficiency
Technical specifications
Electrical
Battery Type: LFP
Battery Model: 306Ah
Energy Capacity: 254 kWh
Voltage Range: 728～936Vdc
P-rate: 0.5P
Compliance: UN 38.3, UN 3480, UL 1973, UL 9540A, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, IEC 60356, IEC 60730-1
PCS
Rated AC Power: 125kW
Rated Grid Voltage: 400Vac
Max. AC current: 181A
Total Harmonic Distortion: <3%
Rated Grid Frequency: 50/60Hz
Peak Efficiency: 98%
Power Factor: -1 to 1, continuously adjustable
Compliance: EN 50549, G99, VDE AR-N 4105, NTS Spain, IEC 62477, IEC 61000-6-2, IEC 61000-6-4
Other specs
Cooling Method: Liquid cooling
Operating Temperature Range: -25～55 °C (>45℃ derating)
Relative Humidity Range: 0～95% (No Condensation)
Max. Working Altitude: 4000m (>2000m derating)
Fire Safety Equipment: Aerosol, Smoke detector, Heat detector, Deflagration panel, Dry pipe(optional)
Battery Compartment Ingress Protection: IP55
System Dimensions (W×D×H): ≈1800×1500×2000 mm Weight: ≈3.5T
