Micro Grid
Micro Grid — Reliable power, anywhere, anytime
Ensure uninterrupted operations with a robust, modular Battery Energy Storage System designed for demanding environments.
Micro Grid delivers critical backup power during outages, keeps vital systems running in industrial, agricultural, and commercial settings, and integrates seamlessly with solar, grid, or generator power. With real-time monitoring, intelligent alerts, and fast on-site installation, it provides dependable, scalable energy security when you need it most.
Benefits
01
High safety
Delivers critical power during outages
Keeps operations running in barns, industrial, and commercial buildings
Reduces the risk of downtime and financial loss
02
Flexible integration

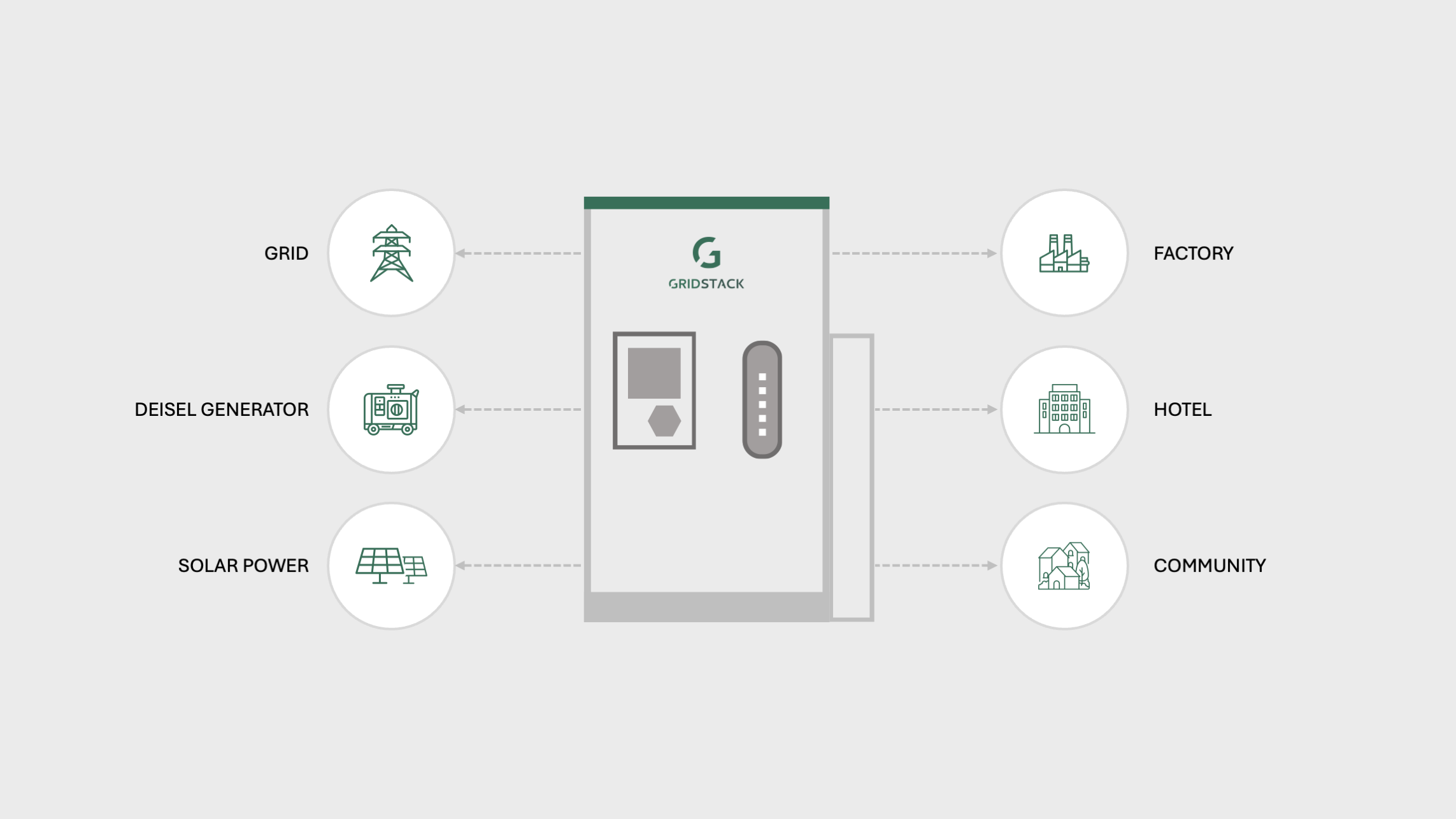

Can be connected to solar systems, the grid, or generators
Modular design makes it easy to expand
Pre-assembled for quick installationon site
03
Broad application
Ideal for industry, agriculture, commercial buildings, and energyintensive environments
Robust design built to withstand demanding conditions
A single cabinet can operate as a microgrid
04
Smart and user-friendly
Real-time system monitoring
Intelligent alerts and efficient issue management
Air-cooled battery pack
Seamless operation – both gridconnected and off-grid
Technical specifications
Electrical
Cell type: LFP
Battery model: 306Ah
Energy capacity: 109 kWh
Cycle life: ≥ 10 000
Charge/discharge rate: ≤ 0,5 P
Battery protection rating: IP67
Operating mode
Rated power: 50kW
Nominal voltage (V): 380/400 Vac
Communication: 50/60 Hz
THDi: < 3 %
THDu: < 3 %
PV-input
MPPT voltage range: 150 – 850 Vdc
Max. PV input power: 96 kW
Number of MPPT channels: 4/2
Max. input current: 40 A
Other specs
Transfer time (grid-connected/off-grid): < 20 ms
Cooling method: Air-cooled
Operating temperature (°C): -25 ~ 55 °C (power derating above 45 °C)
Relative humidity (%): 0 – 95 (non-condensing)
Operating altitude (m): ≤ 4000 m (performance derated above 2000 m)
Protection rating: IP55
Dimensions (L×W×H) mm: 1270 × 1340 × 2094
Weight: ≈ 1.4 t (with hybrid inverter)
Certifications: EN 50549-1, EN 50549-10, VDE-AR-N 4105, NRS 097-2-1, IEC 61000, IEC 62477, IEC 62619, UN 38.3
