Mega Flex
Mega Flex – reliable energy for heavy-duty operations
Mega Flex delivers up to 500 kW across two outlets, enough to fast-charge 4–6 trucks or machines per day. Minimizing downtime in high-demand environments. Its modular, trailer-mountable design fits temporary sites, logistics hubs or urban spaces. While flexible integration with grid, solar or generators ensures peak power whenever and wherever it’s needed.
Benefits
01
1 MWh on-site capacity
Enough to fast-charge 4-6 heavy trucks or machines per day. This capacity minimizes downtime and keeps critical operations moving reliably.
02
High-power DC charging
Up to 500 kW across two outlets (2 × 250 kW), enabling simultaneous rapid charging. Designed for efficiency in high-demand environments requiring quick turnaround.
03
Compact and mobile

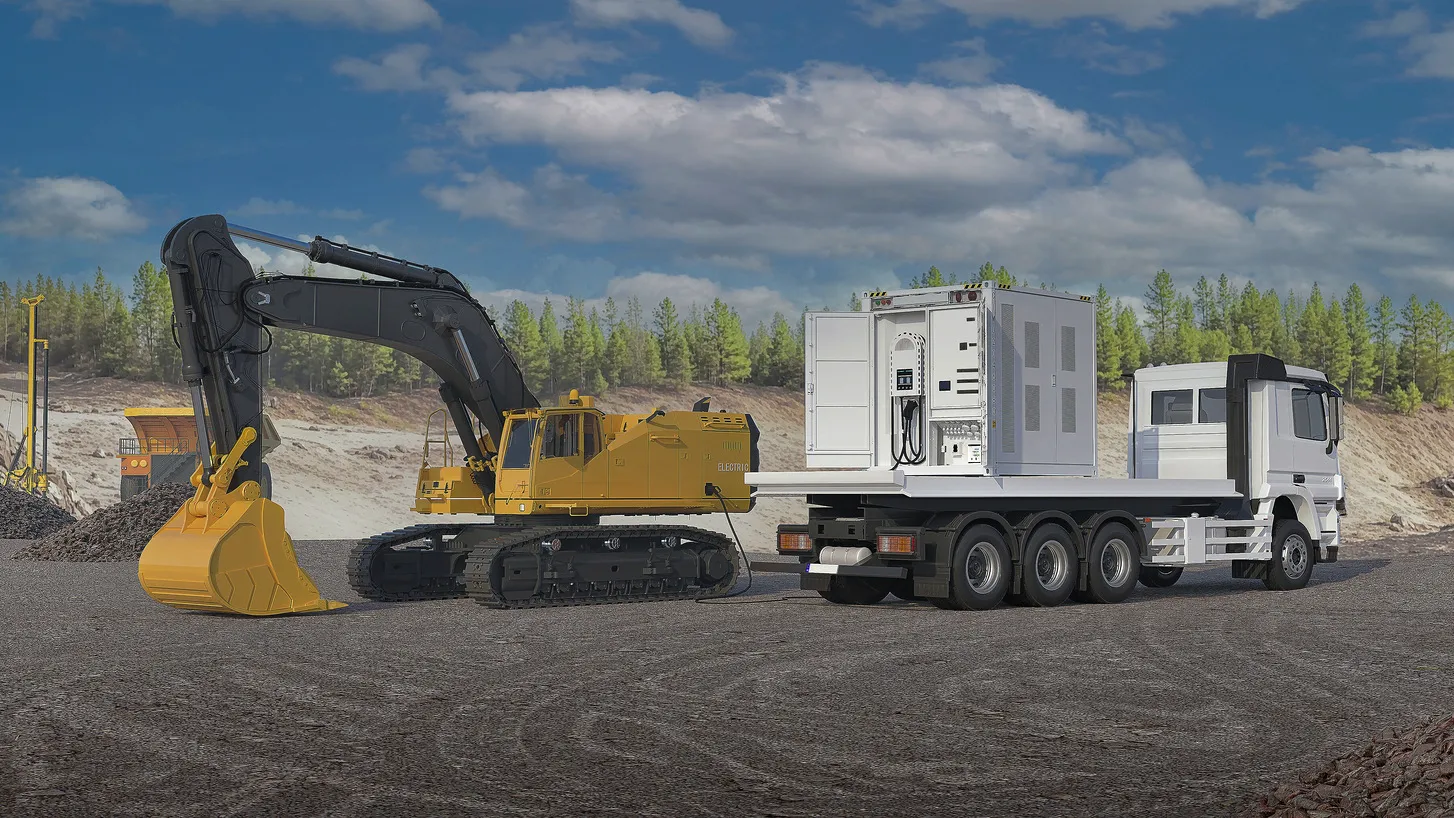

10-foot HQ container, trailer-mountable and redeployable quickly anywhere. Its small footprint and modular design make it ideal for temporary sites, logistics hubs, or urban spaces where flexibility matters.
04
Grid friendly

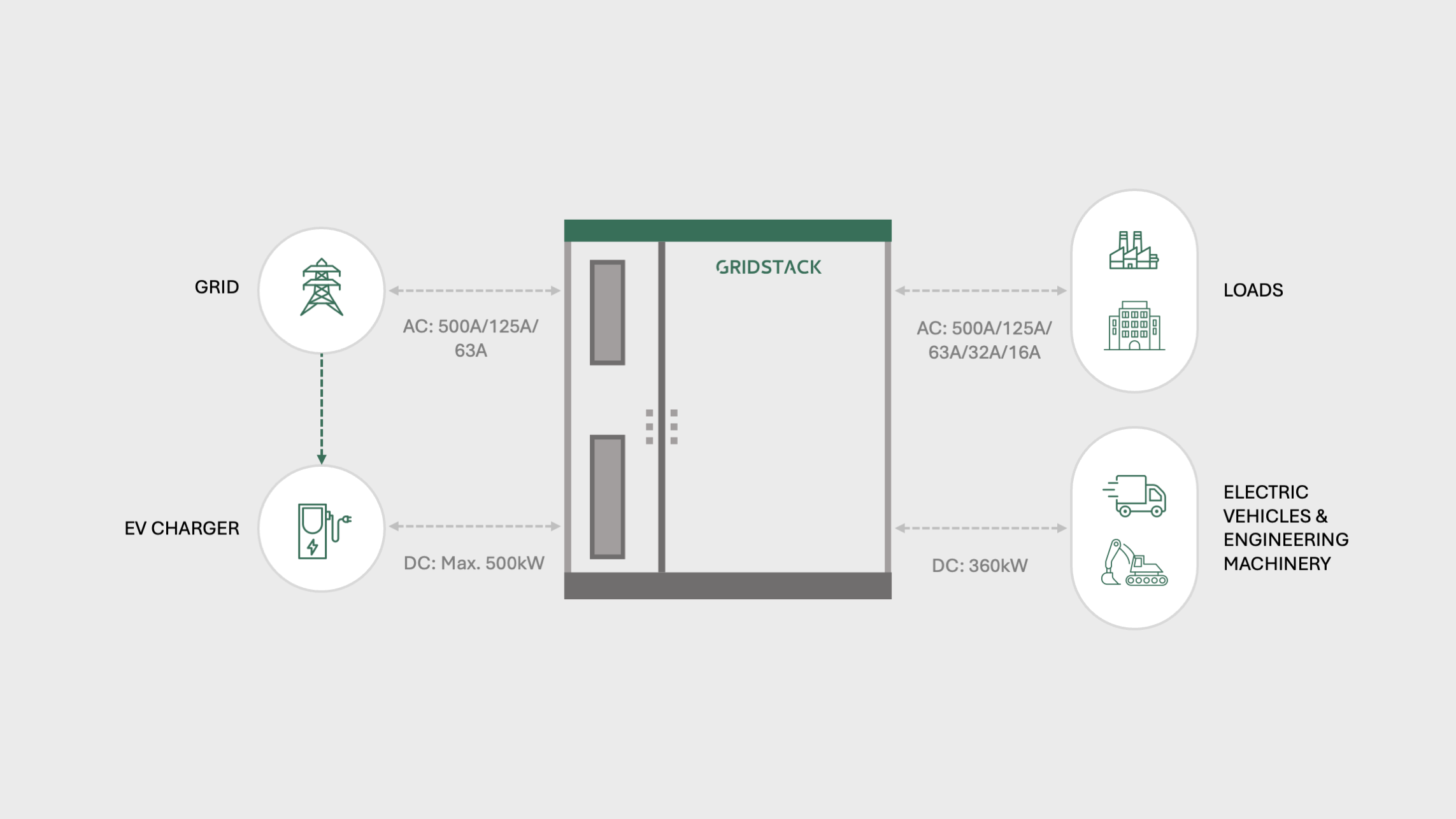

Charge from grid, solar, or genset - and deliver peak power when needed. Flexible integration ensures reliable performance across different energy setups.
Technical specifications
Electrical
Battery capacity: 1044 kWh ~1 MWh
Cell Type: LiFePO₄ – 31.4Ah
Module Model: 1P20S
Battery Capacity: 1044 kWh ~1 MWh
Charge/Discharge Power: 120kW
AC input connection: 3F+N+PE
Current: 500A / 125A / 63A
Voltage: 400V
Frequency: 50/60Hz
Rated Current: 344A
Power Factor: 0.8 (Leading) – 0.8 (Lagging)
Interface: Powerlock 500A 5P, CEE 125A 5P, CEE 63A 5P (all 3F+N+PE, 400V)
AC output connection: 3F+N+PE
Current: 500A / 125A / 63A / 32A / 16A
Voltage: 400V
Frequency: 50/60Hz
Power Factor: 0.8 (Leading) – 0.8 (Lagging)
Interfaces: Powerlock 500A, CEE 125A, 63A, 32A, 16A, 3×Schuko 16A (all 3F+N+PE, 400V)
DC input max power: 500kW
Voltage Range: 250V– 950V
Max Charging Current: 500A
Interface: CCS2
DC output power: 360kW
Voltage Range: 150V–1000V
Output Current: 0–1000A
Max Per Charging Gun: 500A
Interface: 2×CCS2, 7m wire length
Components
Product configuration: All-in-one, integrated charger, power conversion, switchgear, etc.
Cooling method: HVAC
Fire suppression system: Novec1230 + water fire suppression automatic extinguishing system
Protection level: IP54
Communication mode: 4G SIM card
Control method: HMI local control, web and app control
Conditions
Operation mode: On-grid / Off-grid
Protection level: IP54
Operating temperature: -30°C to +50°C
Operating altitude: ≤2000m (Derating >2000m)
Working relative humidity: 0 – 95% (non-condensing)
Seismic rating: 8
Noise emission: ≤75dB
